Product Description

1. Touch screen control

• This pad printer is operated by a touch screen. The touch screen provides an intuitive and convenient operating interface. Users can easily set various parameters on it, and the touch screen can display the machine's working status information, such as whether the machine is running, whether there is a fault, etc., which is convenient for users to understand and adjust in time.

2. Fully electric control

• Fully electric control means that all key components of the machine, such as the up and down movement of the rubber head and the sliding of the oil cup, are driven by electricity. Electric control is more precise and can achieve more delicate movement adjustment. For example, electric drive can more accurately control the height of the rubber head's descent, thereby better controlling the amount of ink transfer and ensuring printing quality. At the same time, the stability of electric control is also better, reducing printing errors caused by factors such as air pressure fluctuations.

3. Monochrome oil cup

• Monochrome oil cup indicates that this pad printer is mainly used for monochrome printing. The oil cup is a key part of the ink supply. It can store ink and evenly supply ink to the printing plate. Using the oil cup to supply ink can effectively control the amount of ink and reduce waste. For monochrome printing, the ink cup can ensure the stability and uniformity of the ink, so that the color of each print is relatively consistent.

4. Multifunctional and easy to operate

• Multifunctional means that it may have multiple working modes or can adapt to different types of printing workpieces. For example, it can adjust the shape and hardness of the rubber head to adapt to the printing of objects of different shapes such as flat or curved surfaces. Easy operation is due to touch screen control and reasonable mechanical design. Even non-professionals can quickly master the use of the machine through simple training or reference to the operation manual, such as setting printing parameters, loading and unloading printing plates and workpieces. This pad printing machine combines these advantages and can efficiently complete monochrome pad printing work.

Full electric One color pad printer //Structure
Working table	Standard working table with 3-size adjustment
Ink supply system	Closed -type system
Plate type and size	0.3mm Thin steel sheet
Full electric One color pad printer//Usage and characters
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
Full electric Type One color pad printer //Parameter
Technical parameters	P1-408CPE
	Max. plate size: 100×200mm; Ink cup disameter: Ф90mm; Max. printing area: 80×80mm; Max. printing speed: 1200pcs/h; Printable color quantity:1.
	P1-410CPE
	Max. plate size: 100×250mm; Ink cup disameter: Ф90mm; Max. printing area: 80×130mm; Max. printing speed: 1000pcs/hr; Printable color quantity:1
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package domension: 1.420×0.810×1.600m; Gross weight: 175KG; CBM: 1.84032
H.S.Code	8443198000
Certicate	CE
Full electric  One color pad printer //Advantage

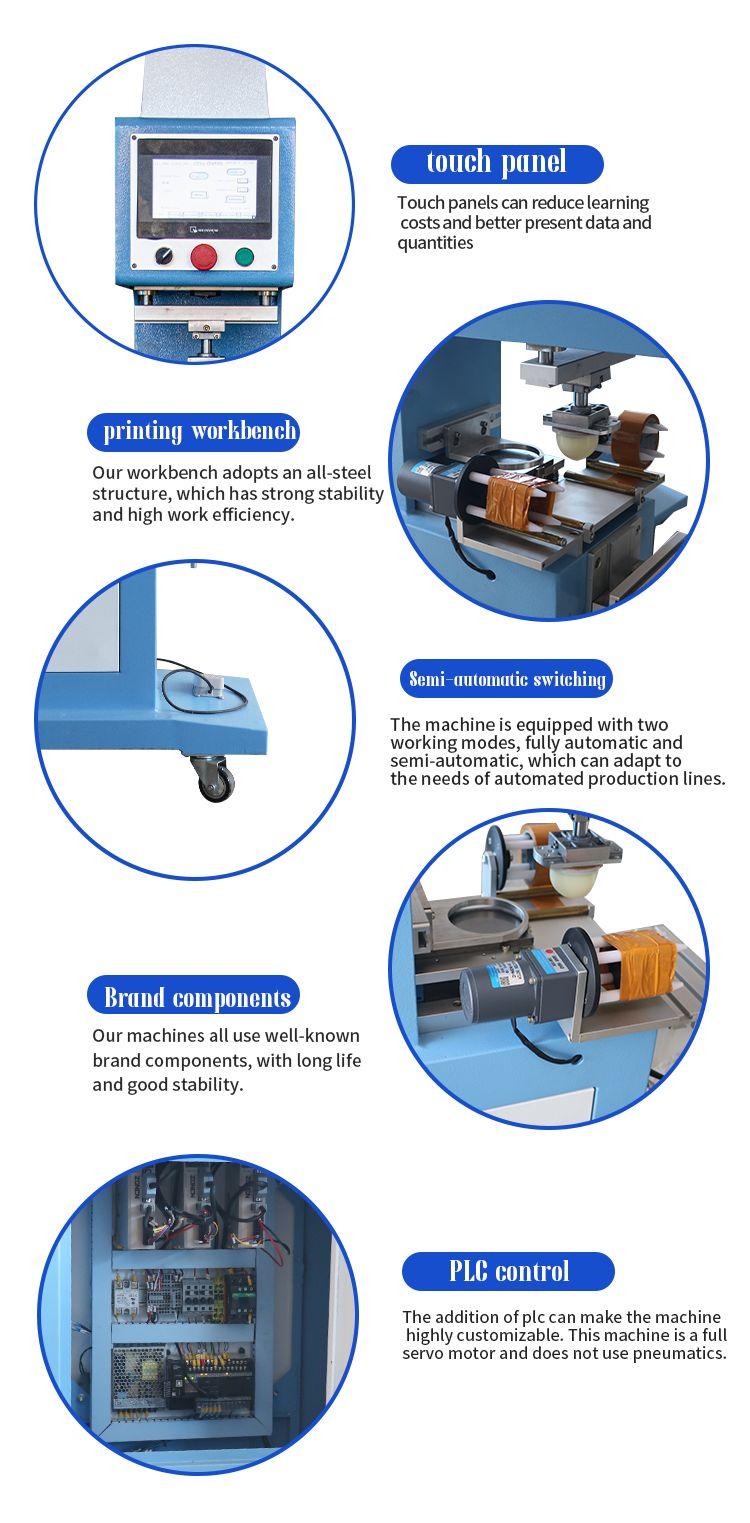

Function	Full motor driven without using compress air ; T-slot structure, easy installation of fixtures and products; Hand pick and place workpiece, operating more handy; Touch screen panel control, the movement is more accurate and reliable; Structure using die-casting aluminum, lightweight and solid. Independent Rubber pad up and down stroke and speed adjustment function; Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel; Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely; Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace; World famous electric components to ensure the long service life of machine; Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

Summary︰
The pad printer is mainly driven by pneumatic driving. Therefore, the pad printer needs to use compression air. In many cases, a separate air compressor may need to be purchased separately. The air compressor has greater noise and insufficient stability. Some users do not like Pneumatic pad printer. The pure electric printer is all the actions: rubber pads move front to back, up to down ,the sliding of the steel plate or the sliding of the ink cup with motor control, the whole machine does not use compressed air, it is more convenient to operate, and the pad printing accuracy is improved.

Printing supplies︰
Pad printers target a wide variety of products, with differences in shape and material. Different products have different printing positions and printing effects. Printing engineers must design different printing processes and select different printing consumables according to user needs.
1) Pad printing plates: The plates are made of thick steel plates, thin steel sheets, resin plates, etc. They are used on oil cup pad printers or open pad printers. The printed pattern needs to be etched on the plates. Generally, a single-color pad printer is equipped with one plate, a two-color pad printer is equipped with two plates, and so on.
2) Fixture: The printed product must be fixed on the workbench with a fixture to ensure that the printing position meets the requirements. The fixture can be made of metal or non-metal materials. A single-color pad printer and a shuttle pad printer require a fixture, while a turntable pad printer needs to be equipped with a number of fixtures equal to the number of workstations.
3) Ink: The ink type is selected according to the material of the product, and the ink color is selected according to the printed pattern. Different types of inks should match different pad printing processes. After the ink dries, it should be able to firmly adhere to the product surface. A single-color pad printer uses one color of ink at a time, a four-color pad printer uses four colors of ink, and so on.
4) Pad printing rubber head: Different product shapes and different pad printing patterns require pad printing rubber heads of different shapes. The pad printing rubber head should be able to perfectly achieve the pad printing task and maintain the stability of the properties.
5) Blade or oil cup: Blades are used on open pad printing machines, and oil cups are used on closed pad printing machines. Blades and oil cups should be able to scrape off the ink on the steel plate and should be replaced in time when damaged.

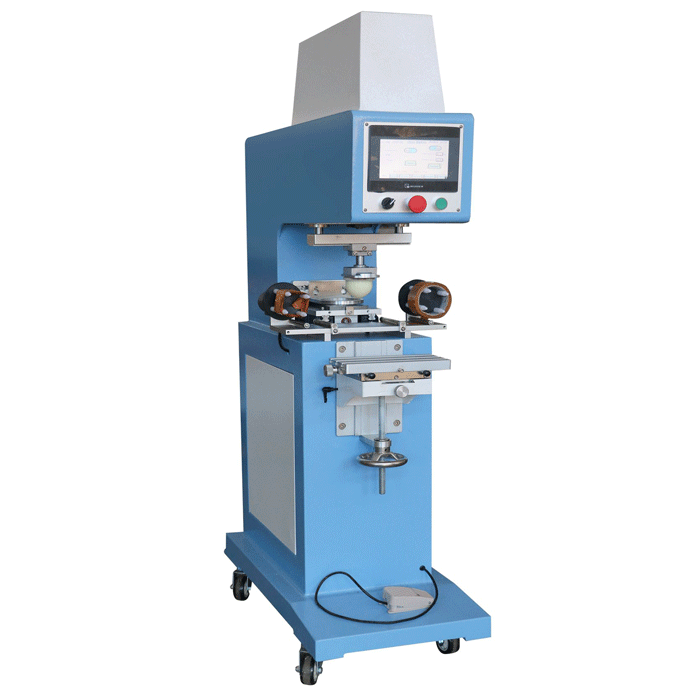

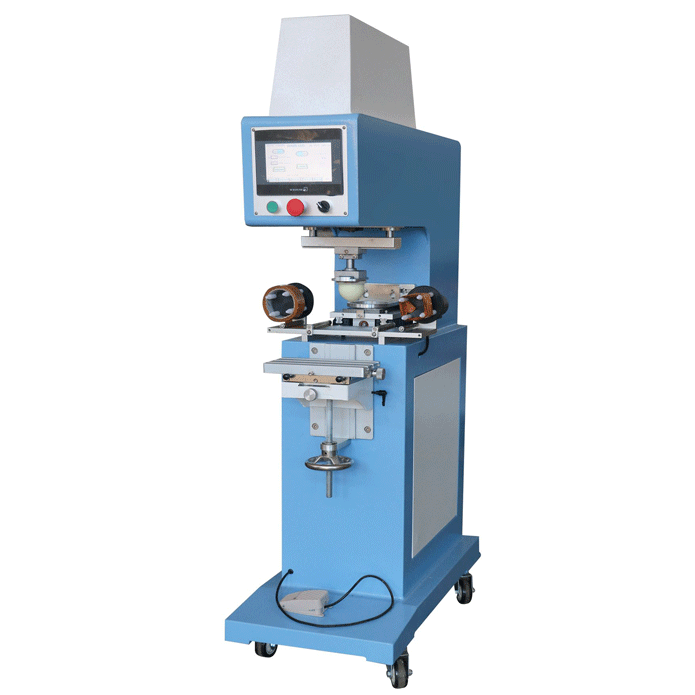

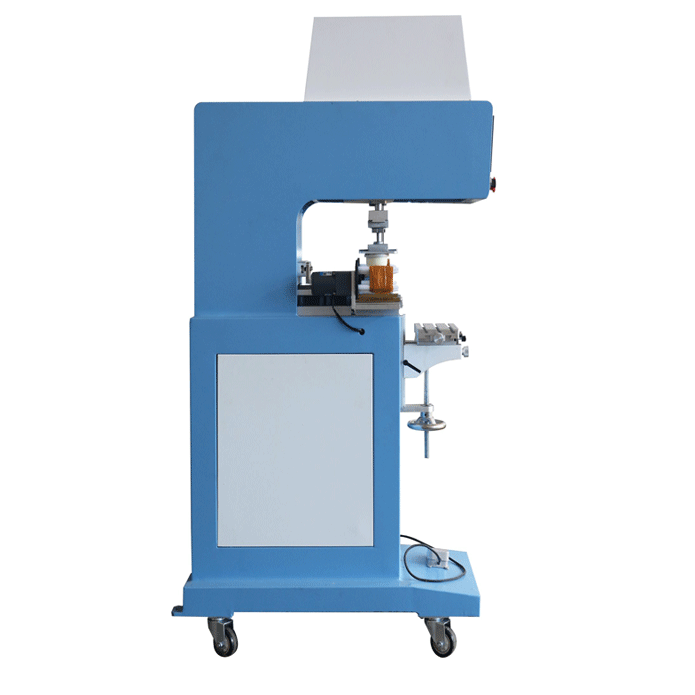

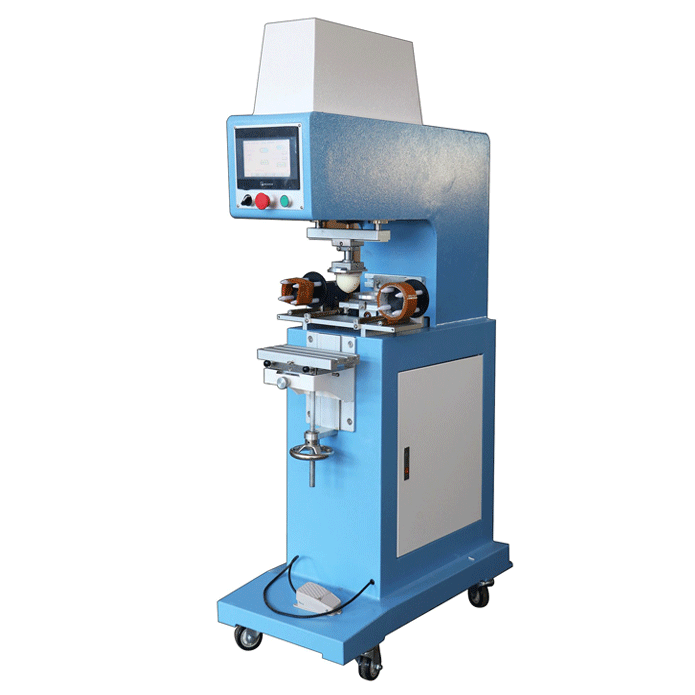

Product Image
