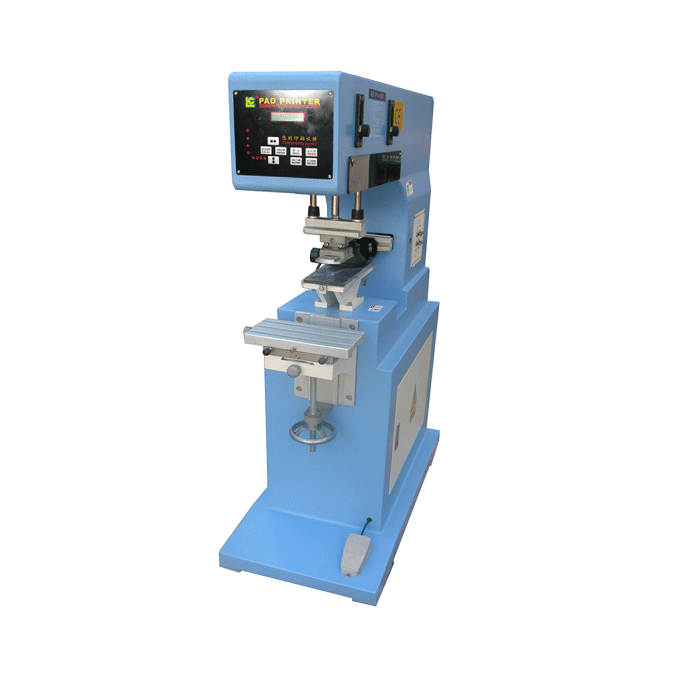

Saw blade Pad printer

Model No.︰PM1-200T

Brand Name︰LC

Country of Origin︰China

Unit Price︰US $ 2103 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Principle

When the monochrome ink cup pad printer is working, the ink is first put into the oil cup, and the scraper spreads the ink evenly on the printing plate, which is etched with the pattern or text to be printed. The pad head is pneumatically driven to press down and absorb the ink, and then moves to the top of the brake pad, saw blade, fan blade and other objects to transfer the ink to their surface to complete the printing process.

Structure

• Oil cup and scraper: The oil cup is used to store ink, and its design can ensure a stable ink supply. The scraper and the oil cup work together to spread the ink evenly on the printing plate.

• Printing plate: Usually made of metal, the surface is specially treated and etched according to the pattern or text to be printed.

• Pad head: Generally made of elastic materials such as silicone, this material can absorb ink well and adapt to the surface of objects of different shapes, and transfer the ink completely.

• Single-chip control system: As the control core, it can control the movement trajectory, pressing time, ink absorption time and other parameters of the pad printing head to ensure the accuracy and stability of printing.

Features

• Monochrome printing capability: It can effectively print monochrome patterns or text on items such as brake pads to meet basic identification and decoration needs.

• Precision control: The single-chip control system can accurately control the various parameters of the pad printing process to make the printed pattern clear and the position accurate.

• Strong adaptability: The elastic material of the pad printing head enables it to print on objects of different shapes, whether it is a flat saw blade or a curved fan blade.

Application

• Identification and information: Print brand logo, model, friction coefficient and other information on the brake pad, and print specifications, number of teeth, material, etc. on the saw blade to facilitate user identification and use.

• Decoration and beauty: Printing simple patterns or lines on fan blades plays a certain decorative role and makes the product more beautiful.

One color pad printer //Structure
Working table	Standard working table with 3-size adjustment
Ink supply system	Closed -type system
Plate type	10mm Thick steel plate.
Pad dropping control	Simple-cylinder , simultaneously pressing
One color pad printer//Usage and characters
Guide	With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%. With coin aluminum structure ensure more stabilization and long life. Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate; Both thick steel plates and thin steel plates installed , Choose according to customer requirements. Can print almost small size objects . So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
One color pad printer //Parameter
Technical parameters	PM1-100T
	Max. steel plate: 100 ×200mm； Ink cup size: Ф90mm； Max. printing area :80×80 mm ； Printable color quantity:1； Max. printing speed: 1300 pcs/h。
	PM1-150T
	Max. plate size: 100×250mm; Ink cup disameter: Ф90mm; Max. printing area: 80×130mm; Max. printing speed: 1100pcs/h; Printable color quantity:1;
	PM1-200T
	Max. plate size: 100×300mm; Ink cup disameter: Ф90mm; Max. printing area: 80×170mm; Max. printing speed: 1000pcs/h; Printable color quantity:1
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package domension: 0.970×0.660×1.450m; Gross weight: 135KG; CBM: 0.801705
H.S.Code	8443198000
Certicate	CE
One color pad printer //Advantage
Function	Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing; T-slot structure, easy installation of fixtures and products; Hand pick and place workpiece, operating more handy; Microcomputer program control, the movement is more accurate and reliable; Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation; Equipped with four counters, can effectively measure the number of products; Structure using die-casting aluminum, lightweight and solid. Independent Rubber pad up and down stroke and speed adjustment function; Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel; Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely; Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace; Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function; World famous pneumatic components to ensure the long service life of machine; Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
