Model No.︰S-HR32UV3

Brand Name︰LC

Country of Origin︰China

Unit Price︰US $ 110069 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Creams, creams and other products in cosmetics that are between solid and liquid are usually stored in large-mouthed plastic boxes. This kind of cosmetic box is the first choice to use silk screen printing machine. Both the dragon screen printer and the rotary screen printer can print, but the rotary screen printer occupies a relatively small area, and it is easier to complete color registration, and it is used by more customers. At present, there are about 10 printing machinery manufacturers in China that produce such rotary screen printing machines. The precision of the turntable screen printing machine is related to the precision of the divider that controls the turntable, the processing precision of the rotating parts, and the precision of the servo system.
The rotary screen printing machine is composed of a feeding conveyor belt, a feeding device, a rotary table, a servo positioning system, a screen printing system, a UV curing system and a blanking system, which represents the highest level of current Chinese screen printing machine manufacturing technology.

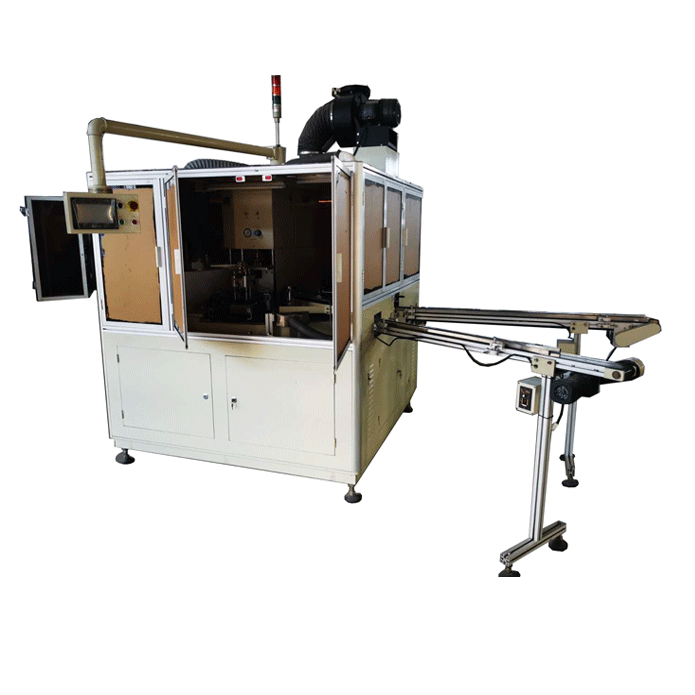

S-HR32UV3 Full automatically Soft-tube screen printing machine/Structure

Feeding device

Conveyor, customized feeding system

Direction identification

Sensor, automatically identification

Surface treatment

Flame treatment, automatically lights

Working table

36-station stand rorating working table

Actions

Precision indexing disc Rotating transport

Max Printing diameter

70mm

Max Printing Length

200mm

Rubber squeegee controlling

High precision guide shaft

Ink drying device

UV Dying system

Discharging

Conveyor

S-HR32UV3 Automatically Soft-tube screen printing machine//Usage and characters

Guide

  • Specially designed for the circular-shaped applications such as soft tubes, bottle caps and cream bottles.
  • It also supports the operation of polychrome printing and accurate color register.
  • The main transfer system adopts famous Occident transmission equipment. With the help of accurate interval slicer in high speed, the system is able to realize the accurate transmission of division, which makes this machine perform stably at a printing speed of 3600 times/hour;
  • The PLC control System enjoys a high reputation. Equipped with simple, convenient and fast touch screen system, man-machine conversation is possible, which makes the operation more handy.
  • As for the solidification of the printing ink, we use the ultraviolet for realization. The ultraviolet will facilitate the printing effects when the stable performance and electricity-efficiency are guaranteed.
  • The full-auto loading and unloading manipulator device system promises continual and stable printing work as well as the safety of operating personnel.

Application fields

  • Plastic packaging, oil industry, cosmetics industry, commodity manufacturing industries;
  • Automotive filters, cylindrical products with positioning points;
  • Some have smooth sides of the cap.

S-HR32UV3 Full automatically screen printing Machine//Parameter

Technical parameters

  • Printing Max. Diameter ¢10-¢70mm;
  • Printing Max Length 20-200mm;
  • Printing station 12;
  • Printing Speed 2500Pcs/H;
  • Power supply 380V 50 MHz;
  • Air pressure 1.6-1.8Mpa;
  • Total power 11.5kw

Works supply

  • Power: 3 phase 380V;
  • 5-7Bar Compress air ;
  • Liquefied petroleum Gas, Natural gas

Package list

  • Package Dimension: 2382*2380×1920mm;
  • Gross weight: 2900Kg
  • CBM: 10.8757

H.S.Code

8443198000

Certificate

CE

S-HR32UV3 3-color full automatically screen printing machine//Advantage

Function

  • Designed for the screen printing of the special circular substrates designed mainly applies to hoses, caps, cream bottles, test tubes and other round products.
  • The integration of the whole synchronization on the material, the width of the feed device can be flexibly adjusted, easy to adjust depending on the size of the hose; speed stepless adjustment, so that the transport speed and printing speed like a match;
  • Online flame treatment device, the surface tension of PE PE materials to increase the adhesion of the ink;
  • Patented hose disc transmission system, run smooth, high accuracy;
  • Automatic screen printing equipment, the fixture can dress according to the size of the hose; printing locale electronic sensors, and no pieces of printing function;
  • England high-performance UV drying device, ink instantaneous drying; pull lamp replacement unit, the lamp is easy to replace;
  • The whole machine of mechanical drive, touch screen operation, easily man-machine dialogue, make operation even easier;
  • The eight main parts with CNC machining, high-quality machining accuracy to ensure the stability of high-speed operation, the printing speed of up to 4000pcs/hr.
  • With the automatic monitoring of air pressure too low alarm function.
  • Electrical components and control systems using components of Germany and Japan to ensure stable printing quality.

Main configuration

  • Main Motor:BGM Motor/reduver;
  • Feeding Motor:STS Motor-31K15RGN-C/15W;
  • Sensor:DZ47LE-32;
  • SWTICH):Schneider -France;
  • Contactor:Schneider -France;
  • Relay : Idec-Jappan;
  • IR drying ):Taiwan;
  • Transport speeder :STS/AUS22-15W;
  • Collecting Motor : STS/51K60RGN-CF/60W;
  • Drying speeder: STS/AUS22-60;
  • Temperature controller: RKC/REX-C100;
  • Counter: DHC;
  • Transducer: TAIAN/N2-2P5H;
  • Cooling fan: SUNON/DP200A.

Summary︰ Creams, creams and other products in cosmetics that are between solid and liquid are usually stored in large-mouthed plastic boxes. This kind of cosmetic box is the first choice to use silk screen printing machine. Both the dragon screen printer and the rotary screen printer can print, but the rotary screen printer occupies a relatively small area, and it is easier to complete color registration, and it is used by more customers. At present, there are about 10 printing machinery manufacturers in China that produce such rotary screen printing machines. The precision of the turntable screen printing machine is related to the precision of the divider that controls the turntable, the processing precision of the rotating parts, and the precision of the servo system.
The rotary screen printing machine is composed of a feeding conveyor belt, a feeding device, a rotary table, a servo positioning system, a screen printing system, a UV curing system and a blanking system, which represents the highest level of current Chinese screen printing machine manufacturing technology.
